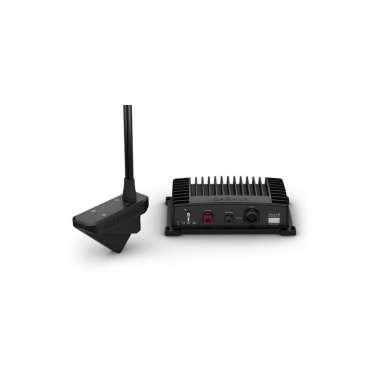

GARMIN Panoptix LiveScope System w/ LVS32 and GLS10



1712,88 €
SKU: 010-01864-00
Brand:
Qty: 0
Delivery time: 1-3 days



General
Physical dimensions GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm, LVS32 transducer: 13.7 x 9.7 x 4.6 cm
Weight GLS 10 sonar black box: 2.0 kg; LVS32 trasnducer: 0.9 kg
Water rating IPX7
Garmin Marine Network™ ports 1 (small connector)
Temperature range Operating: -15°C to 70°C; Non-operating: -40°C to 85°C
Sonar features & specifications
Frequencies supported 530-1,100 kHz
Transmit power 500 W
Maximum depth Down and forward: 200 feet (61 m)
Electrical
Power input 10-32 V
Power usage 21 W typical, 58 W max
Fuse 7.5 A


In the box:
