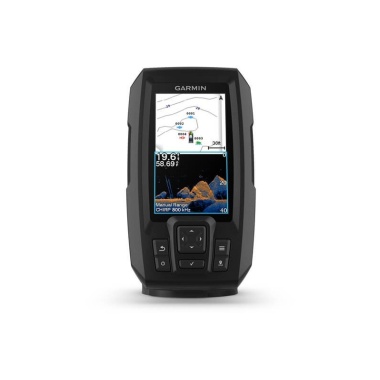

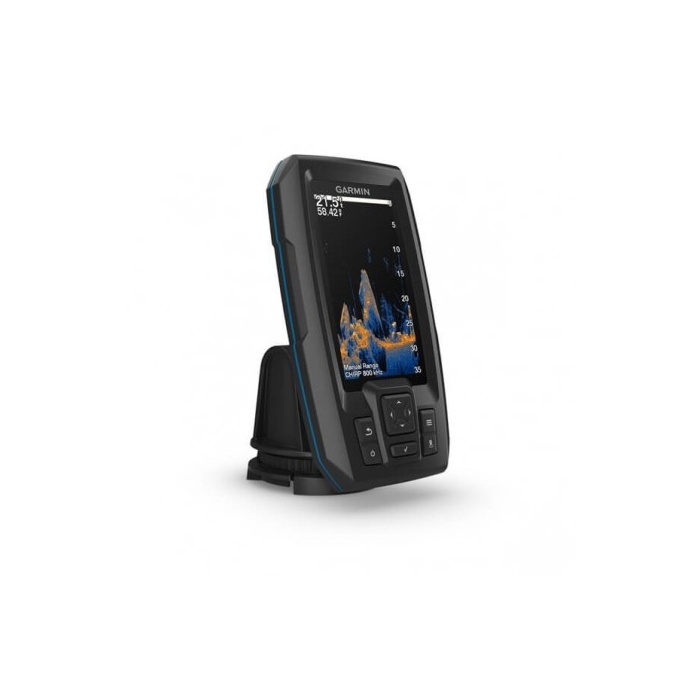

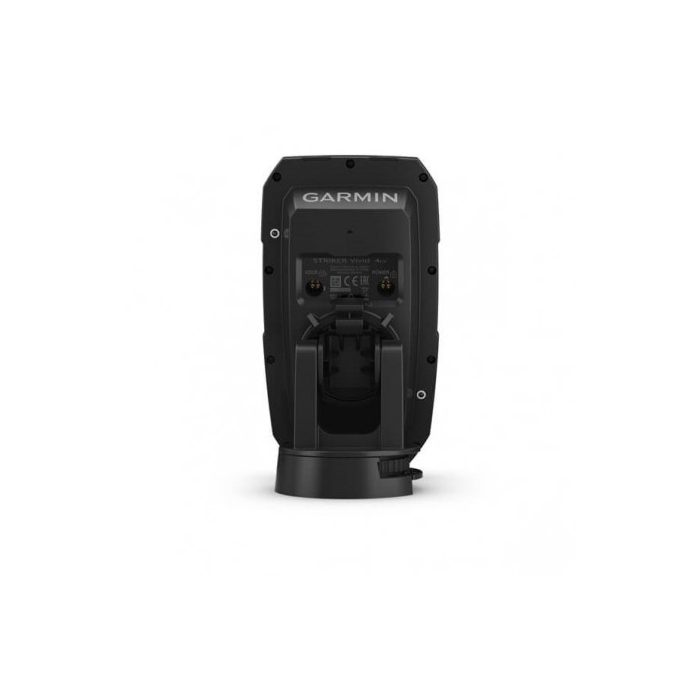

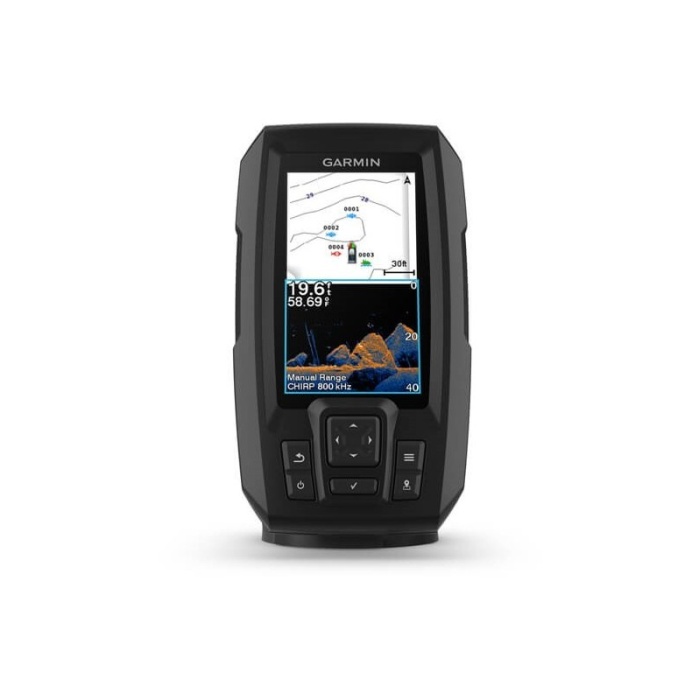

GARMIN Striker Vivid 4cv, WW w/GT20 Transducer



235,46 €
SKU: 010-02550-01
Brand:
Qty: 0
Delivery time: 1-3 days



The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.
What a view. Use the included transducer to get CHIRP traditional and ClearVü sonars.
Never lose a hot spot again. Use waypoint marking to find your way back.
What’s under the water’s surface looks pretty good as 1' contours, just saying.


THE CHOICE IS YOURS

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 4cv fishfinder with transducer.



A new way to see what’s under the water.

CLEAR, COLORFUL SONAR

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 4” fishfinder.

BUILT-IN SONAR

Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.


QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 4cv fishfinder, you can store up to 2 million acres of maps with 1’ contours1.

INCLUDED HARDWARE

The STRIKER Vivid 4cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

DISPLAY SIZE 2.1" x 3.7" (5.4 x 9.5 cm); 4.3" diag, (10.9 cm)
DISPLAY RESOLUTION 272 X 480 pixels
MOUNTING OPTIONS flush, tilt/swivel
INPUT Keyed

Maps & Memory

WAYPOINTS/FAVORITES/LOCATIONS 5000
TRACK POINTS 50,000
TRACKS 50
NAVIGATION ROUTES 100

Sensors

GPS yes
HAS BUILT-IN RECEIVER yes
SUPPORTS WAAS yes

Optional Map Support

GARMIN QUICKDRAW CONTOURS yes

Electrical Features

POWER INPUT 12 to 20 Vdc
TYPICAL CURRENT DRAW 0.40 A
MAX CURRENT DRAW 1.5 A
POWER CONSUMPTION 4.8

Sonar Features

DISPLAYS SONAR yes
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) Built-in
CLEARVÜ yes
FREQUENCY Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz
TRANSMIT POWER 300 W (RMS)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) yes
WATER TEMPERATURE LOG yes

Connections

4-PIN TRANSDUCER PORTS 1

Fishfinder Features

SPLIT-SCREEN ZOOM yes
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) yes
AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS)

yes

ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) yes
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) yes
WATER TEMPERATURE SENSOR INCLUDED yes
DEPTH RANGE SHADING yes



In the box:
  • STRIKER Vivid 4cv fishfinder
  • GT20-TM transducer
  • Power/data cable
  • Tilt/swivel mount
  • Hardware
  • Documentation
