SKU: 010-02329-00
Brand:

Qty: Pre-order
Delivery time: 1-3 days

Add to wishlist

Compare

Description

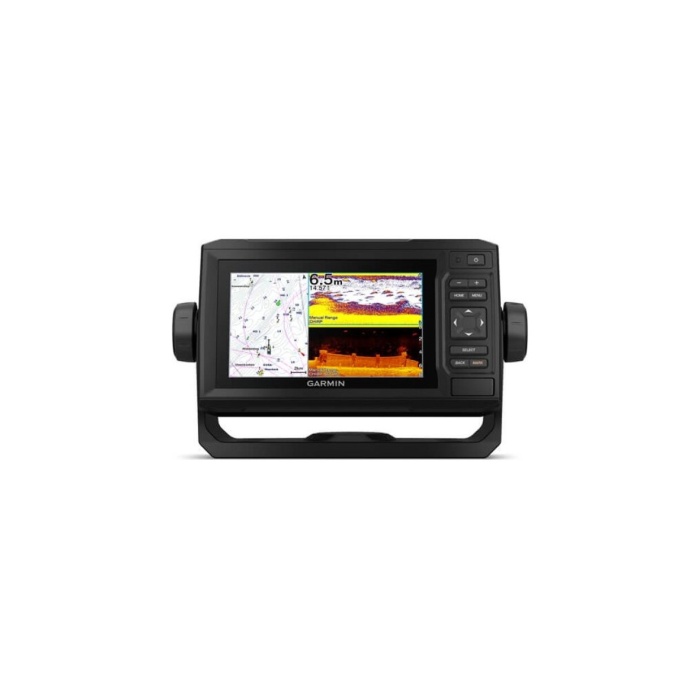

ECHOMAP™ UHD 62cv without Transducer

The sunlight-readable 6” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

See below your boat in incredible detail with optional transducer
Navigate any waters with optional charts and maps
Manage your marine experience from nearly anywhere
Create your own maps on the fly and tailor them to fit your needs

IN THE BOX WITHOUT TRANSDUCER

ECHOMAP UHD 62cv
Charging/data cable
Tilt/swivel mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation

IN THE BOX WITH TRANSDUCER

ECHOMAP UHD 62cv
GT24UHD-TM?transducer
8-pin Transducer to 4-pin Sounder Adapter Cable
Charging/data cable
Tilt/swivel mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation

GARMIN ECHOMAP UHD 62cv, WW, w/o xdcr

General

Maps & Memory

Outdoor Recreation Features

Chartplotter Features

Sonar Features & Specifications

Connections

IN THE BOX WITHOUT TRANSDUCER

IN THE BOX WITH TRANSDUCER

Contact Us

Information

Extra

My Account

General
PHYSICAL DIMENSIONS	21.8 x 13.0 x 6.2 cm
DISPLAY SIZE	13.7 x 7.7 cm; 15.2 cm (6.2") diagonal
DISPLAY RESOLUTION	480 x 800 pixels
DISPLAY TYPE	WVGA display
WEIGHT	0.7 kg
WATER RATING	IPX7
POWER CONSUMPTION	12 W
ANTENNA	Internal or external over NMEA 2000
MOUNTING OPTIONS	Bail or flush
RECEIVER	5 Hz
GARMIN MARINE NETWORK PORTS	None
Maps & Memory
PRELOADED MAPS	BlueChart® g3 (coastal charts)
ACCEPTS DATA CARDS	1 microSD card; 32 GB maximum size
WAYPOINTS	Yes
ROUTES	Yes
TRACK LOG	50,000 points; 50 saved tracks
Outdoor Recreation Features
TIDE TABLES	Yes
Chartplotter Features
GARMIN SONAR COMPATIBLE	Yes
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)	Yes
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)	Yes
ACTIVECAPTAIN COMPATIBLE	Yes
SAILING FEATURES	Yes
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE	Yes
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE	Yes
TRANSMIT POWER	500 W (RMS) / 4,000 W (peak to peak)
CHIRP SONAR TECHNOLOGY	Yes (Built-in)
CLEARVÜ	Yes with CHIRP (built-in)
SIDEVÜ	no
MAXIMUM DEPTH	700 metres @ 77 kHz, freshwater
	335 metres @ 77 kHz, saltwater
	(depth capacity is dependent on water bottom type and other water conditions)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)	Yes
WATER TEMPERATURE LOG AND GRAPH	Yes
SONAR RECORDING	Yes
SONAR HISTORY REWIND	Yes
