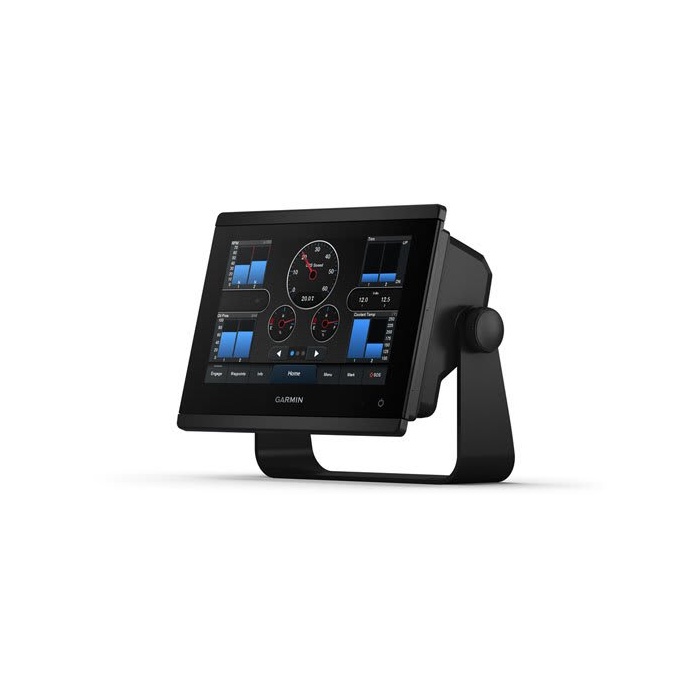

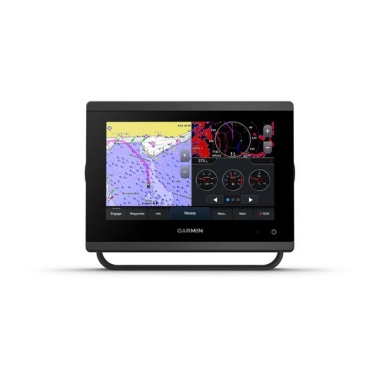

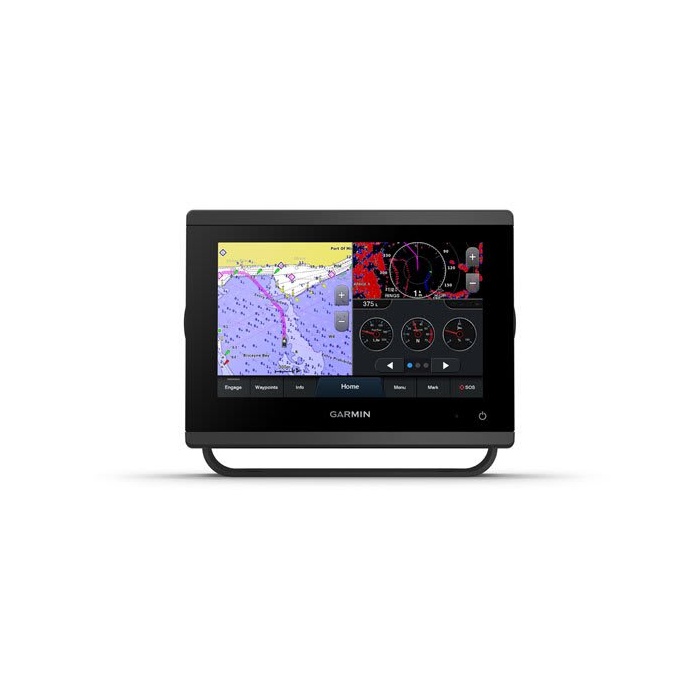

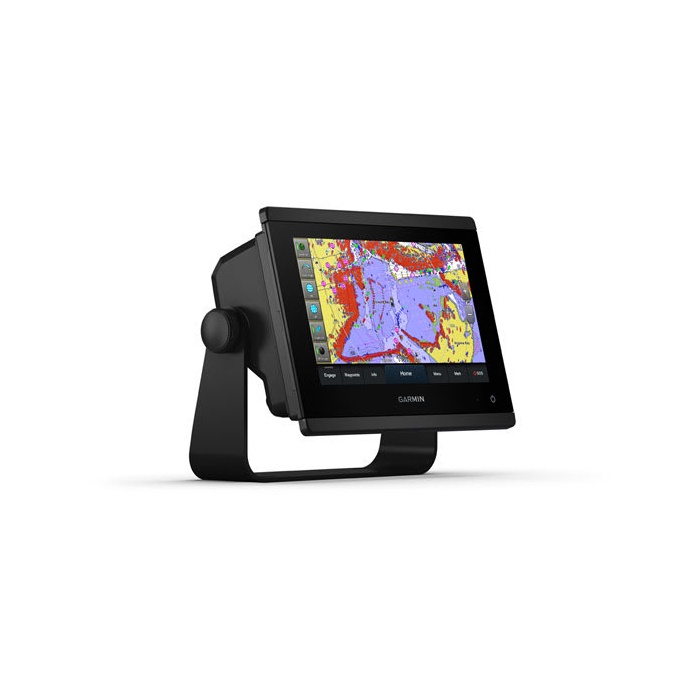

GPSMAP® 723, Non-sonar with Worldwide Basemap

GET A SHARPER VIEW FROM YOUR CONNECTED HELM
With 60% more display pixels and nearly double the processing power of previous-generation 7-inch GPSMAP devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.

Easily integrate with more engines.
Connect to compatible third-party devices with OneHelm™ digital switching.
Easily build your marine system using the best of network connectivity.
Compatible with premium maps and charts1 for the best in Garmin navigation.
Take the guesswork out of sailing with clear laylines and more — right on the screen.
Manage your marine experience from nearly anywhere.

FASTER, SHARPER, SMARTER

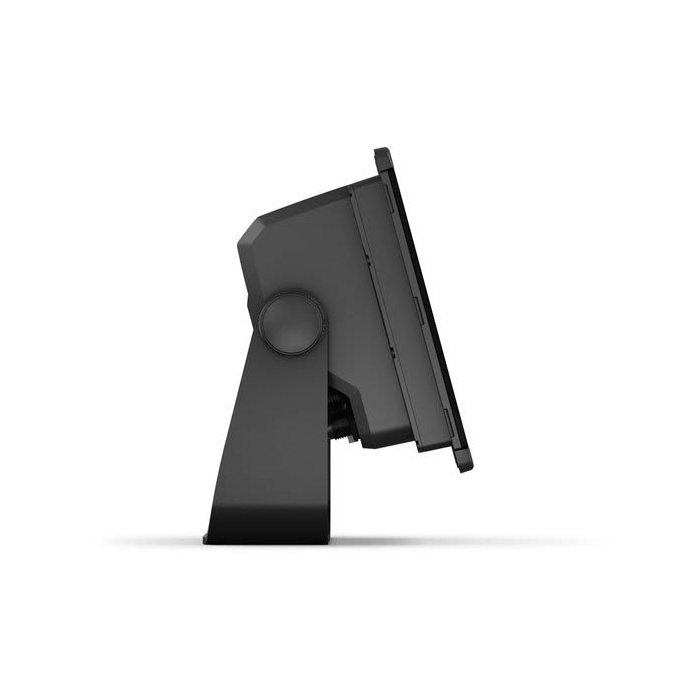

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 7-inch plotter in a wider range of dash configurations.

IMPROVED DISPLAY OPTICS
New higher-resolution 7-inch displays offer improved sunlight readability with 60% more pixels than previous-generation 7-inch GPSMAP devices.

GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

OPTIONAL BLUECHART® G3 VISION® CHARTS
These optiona charts offer the best of Garmin and Navionics® data, Auto Guidance4 technology and other premium navigation features.

GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000® AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.

INTEGRATED ANT® TECHNOLOGY
Connect with some of your favourite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

J1939 CONNECTIVITY
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

ONEHELM™ FEATURE
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

PANOPTIX™ SONAR SUPPORT
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) with FrontVü scanning sonar6 to help you see and avoid submerged obstacles in real time as you approach within a 91-metre range.

TECHNICAL SPECIFICATIONS:

Physical dimensions: 19.2 x 14.0 x 7.4 cm
Display size: 15.4 x 9.1 cm; 7.0" diagonal
Display resolution: 1024 x 600 pixels, wsvga display
Weight: 1.3 kg
Water rating: ipx7
Polarised support
Power consumption:
Max power usage at 10 vdc: 17.6 w
Typical current draw at 12 vdc: 1.1 a
Max current draw at 12 vdc: 1.5 a
Antenna: internal or external over nmea 2000
Mounting options: bail, flush or flat
Receiver: 10 hz high-sensitivity
Garmin marine network™ ports: 1

Maps & memory
Preloaded maps: worldwide basemap
Accepts data cards: 2 microsd™ cards (back of unit)
Waypoints: 5,000
Track log: 50,000 points; 50 saved tracks
Routes: 100

Outdoor recreation features: Tide tables

Chartplotter features:
Garmin radar compatible
Garmin sonar compatible: yes (with external black box, sold separately)
Garmin smartmode compatible (customisable monitor presets)
Supports ais (tracks target ships position)
Supports dsc (displays position data from dsc-capable vhf radio)
Supports fusion-link™ compatible radios
Gsd™ black box sonar support
Gcv™ black box sonar support
Activecaptain compatible
Grid™ (garmin remote input device) compatible
Wireless remote compatible
Sailing features

Sonar features & specifications:
Chirp sonar technology: yes (with external black box, sold separately)
Clearvü: yes (with external black box, sold separately)
Sidevü: yes (with external black box, sold separately)

Connections:
Nmea 2000® compatible
Nmea 0183 input ports: 1 (differential)
Nmea 0183 output ports: 1 (differential)
Video input ports: 1 bnc
Wireless connectivity
J1939 compatible
