GARMIN GPSMAP 1222xsv, Worldwide
GARMIN GPSMAP 1222xsv, Worldwide GARMIN GPSMAP 1222xsv, Worldwide GARMIN GPSMAP 1222xsv, Worldwide
Артикул: 010-01741-02
Бренд:
Время доставки: 1-3 дня

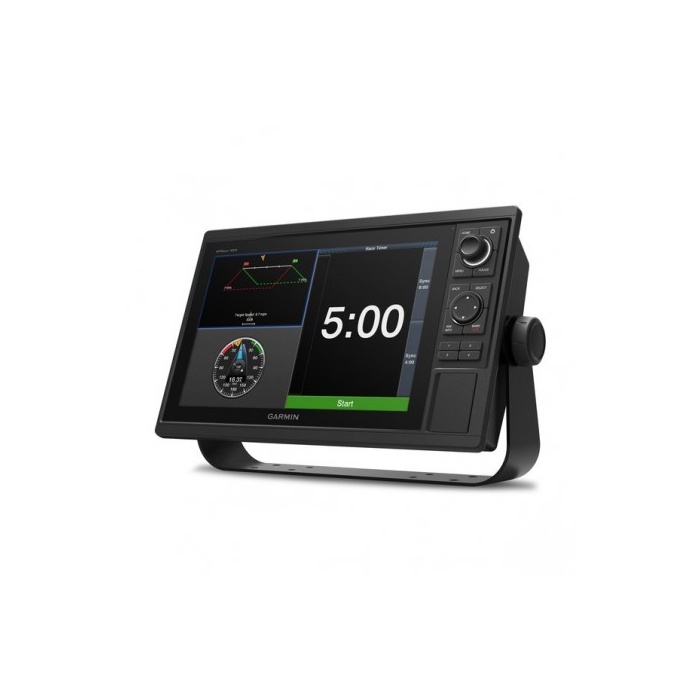

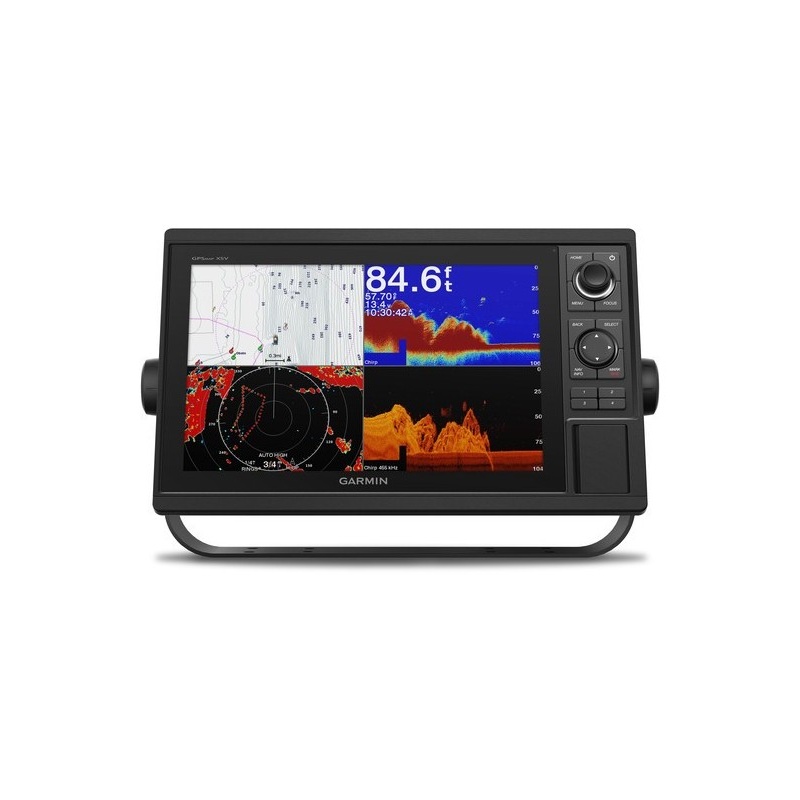

GPSMAP® 1222xsv Without Transducer

12-inch Chartplotter/Sonar Combo Is An All-in-One Solution
12-inch colour display with keypad interface and multifunction control knob
High-sensitivity internal 10 Hz GPS and GLONASS receiver
Built-in support for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and Panoptix™ (transducers sold separately)
Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features

Experience an advanced all-in-one solution with our 12-inch GPSMAP 1222xsv keyed combo. Includes built-in support for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü. It also supports Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, FUSION-Link, VHF, AIS and other sensors.

Built-in ANT® Connectivity
Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.

Built-in Sonar Capabilities
Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).
Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.

Heading, Position Refreshed 10 Times per Second
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Upgrade to Our Best Maps on the Water
Two SD™ card slots provide expandable memory for accessory map purchases, such as BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance¹ and other great features.

Quickdraw Contours to Create Your Own HD Maps
Instantly create personalised HD fishing maps on screen with 0.3m contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Built-in SailAssist Features
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer
If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

SPECIFICATIONS:

Physical Dimensions: 35.8 X 22.6 X 6.9 Cm
Display Size: 26.2 X 16.3 Cm
Display Resolution: 1280 X 800 Pixels
Display Type: Wxga Display
Weight: 2.34 Kg
Water Rating: Ipx7
Power Consumption:
Max Power Usage at 10 Vdc: 34.8 W
Typical Current Draw at 12 Vdc: 2.2 a
Max Current Draw at 12 Vdc: 2.9 a
Antenna: Internal or External Over Nmea 2000
Mounting Options: Bail or Flush
Receiver: 10 Hz High-sensitivity
Garmin Marine Network™ Ports: 2

Maps & Memory:
Preloaded Maps: None
Accepts Data Cards: 2 Sd™ Cards
Waypoints: 5,000
Track Log: 50,000 Points; 50 Saved Tracks
Routes: 100
Outdoor Recreation Features: Tide Tables

Chartplotter Features:
Garmin Radar Compatible
Garmin Sonar Compatible: Yes (With External Black Box)
Garmin Smartmode Compatible (Customizable Monitor Presets)
Supports Ais (Tracks Target Ships Position)
Supports Dsc (Displays Position Data From Dsc-capable Vhf Radio)
Garmin Meteor™ Audio System Compatible
Supports Fusion-link™ Compatible Radios
Gsd™ Black Box Sonar Support
Gcv™ Black Box Sonar Support
Activecaptain Compatible
Garmin Helm™ Compatible
Grid™ (Garmin Remote Input Device) Compatible
Wireless Remote Compatible

Sonar Features & Specifications:
Dual-frequency (50/200 Khz) Sonar Capable
Dual-beam (77/200 Khz) Sonar Capable
Transmit Power: 1 Kw Traditional; 1 Kw Chirp
Chirp Sonar Technology: Yes (Built-in)
Clearvü: Yes With Chirp (Built-in)
Sidevü: Yes With Chirp (Built-in)
Maximum Depth 1500m at 1kw (Depth Capacity is Dependent on Water Bottom Type and Other Water Conditions)
Bottom Lock (Shows Return From the Bottom Up)
Water Temperature Log and Graph
Sonar Recording
Sonar History Rewind
Connections:
Nmea 2000® Compatible
Transducer PIN numbers: 12
Nmea 0183 Input Ports: 1
Nmea 0183 Output Ports: 1
Video Input Ports: 1 Bnc
Video Output Ports: None
Wireless Connectivity

In the Box:
GPSMAP 1222xsv chartplotter
Power/data cable
NMEA 2000 T-connector
NMEA 2000 drop cable (2 m)
8-pin transducer to 12-pin sounder adapter cable
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Documentation
