ECHOMAP™ UHD 72cv With GT24UHD-TM Transducer

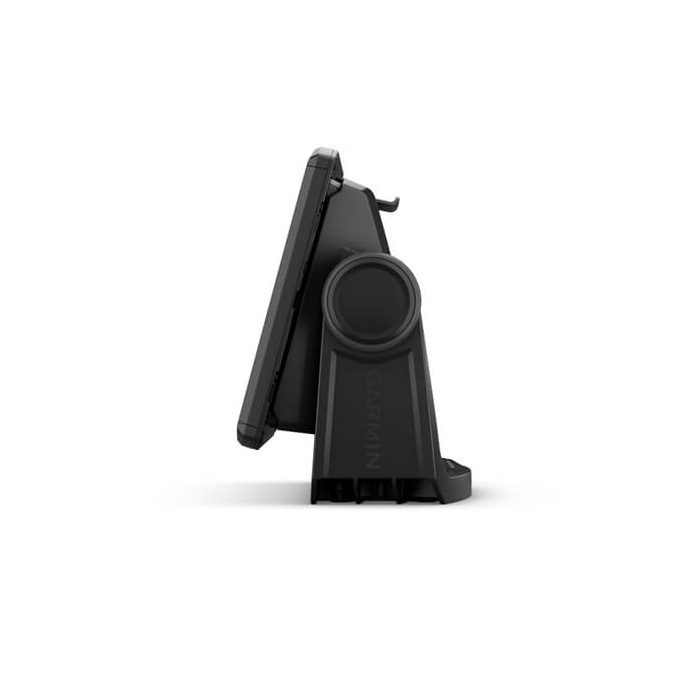

The sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

See below your boat in incredible detail with optional transducer
Navigate any waters with optional charts and maps
Share data with other devices on your network (7” and 9” models only)
Manage your marine experience from nearly anywhere
Control the most powerful trolling motor available
Create your own maps on the fly and tailor them to fit your needs

SONAR SUPPORT
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

OPTIONAL TRANSDUCER BUNDLE
Select the transducer bundle to add a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

OPTIONAL CHARTS AND MAPS
Experience unparalleled coverage and detail with support for optional BlueChart® g3 Vision coastal charts featuring integrated Garmin and Navionics® content.

QUICKDRAW CONTOURS
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

NETWORK CAPABLE
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7” and 9” models only).

NMEA 2000® AND NMEA 0183 NETWORKS
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.

FORCE™ TROLLING MOTOR COMPATIBILITY
Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.

General Specification:

Physical Dimensions: 9.8" X 5.5" X 2.0" (25 X 13.9 X 5.1 Cm)
Display Size: 6.1" X 3.4"; 7.0" Diagonal (15.5 X 8.6 Cm; 17.8 Cm Diagonal)
Display Resolution: 400 X 800 Pixels
Display Type: Wvga Display
Weight: 1.7 Lbs.(0.77kg)
Water Rating: Ipx7
Power Consumption: 15w
Antenna: Internal or External Over Nmea 2000
Mounting Options: Bail or Flush
Receiver: 5 Hz
Garmin Marine Network™ Ports: 1 Panoptix™ Port

Maps & Memory
Preloaded Maps: Worldwide Basemap
Accepts Data Cards: 1 Microsd™ Card; 32 Gb Maximum Size
Waypoints: 5,000
Routes: 100
Track Log: 50,000 Points; 50 Saved Tracks

Outdoor Recreation Features
Tide Tables: Yes

Chartplotter Features
Garmin Sonar Compatible: Yes
Supports Ais (Tracks Target Ships Position): Yes
Supports Dsc (Displays Position Data From Dsc-capable Vhf Radio): Yes
Gcv™ Black Box Sonar Support: YEs
Activecaptain Compatible: Yes
Sailing Features: Yes

Sonar Features & Specifications
Dual-frequency (50/200 Khz) Sonar Capable: Yes
Dual-beam (77/200 Khz) Sonar Capable: Yes
Transmit Power: 500 W (Rms) / 4,000 W (Peak to Peak)
Chirp Sonar Technology: Yes (Built-in)
Clearvü: Yes With Chirp (Built-in)
Sidevü: No
Maximum Depth:
2,300 Ft @ 77 Khz, Freshwater
1,100 Ft @ 77 Khz, Saltwater
(Depth Capacity is Dependent on Water Bottom Type and Other Water Conditions)
Bottom Lock (Shows Return From the Bottom Up): Yes
Water Temperature Log and Graph: Yes
Sonar Recording: Yes
Sonar History Rewind: Yes

Connections
Nmea 2000® Compatible: Yes
Transducer Pin Numbers: 8
Nmea 0183 Input Ports: 1
Nmea 0183 Output Ports: 1
Video Input Ports: None
Video Output Ports: None
Wireless Connectivity: Yes

In The Box:

ECHOMAP UHD 72cv with worldwide basemap
GT24UHD-TM transducer
Power/data cable
Tilt/swivel mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
