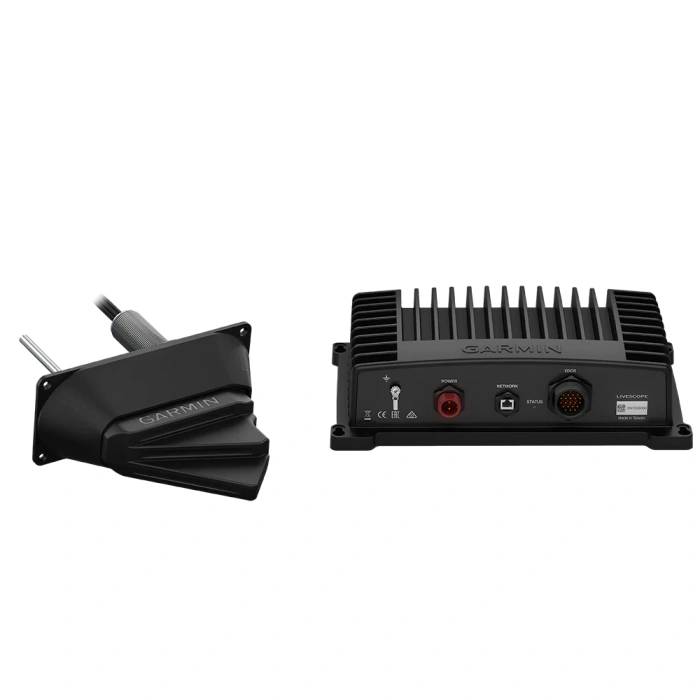

GARMIN Panoptix LiveScope System,Thru Hull w/ GLS10 and LVS32



2109,38 €
SKU: 010-02233-00
Brand:
Qty: 0
Delivery time: 1-3 days

See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary
See incredibly sharp real-time scanning sonar images up to 200’ around your boat
Attitude Heading Reference System stabilizes sonar view on chartplotter screen, even in rough conditions
Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter1
Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn’t need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!

LIVESCOPE FORWARD SONAR

Scout and fish out ahead of your cast with live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat.

EXCELLENT RANGE

Not only can you see crystal-clear imagery around your boat, you can also see at a distance of up to 200’ in both modes — even while your boat is stationary.

IMAGE STABILIZATION

Attitude Heading Reference System stabilizes the sonar view on your chartplotter screen, even in rough conditions.

EASILY CONNECT TO YOUR SYSTEM

Seamlessly integrate this system with your compatible Garmin chartplotter using the simple plug-and-play Garmin Marine Network connector.


SPECIFICATIONS:

Physical Dimensions:
Gls 10 Sonar Black Box: 9.6” X 5.9” X 2.6” (24.5 X 14.9 X 6.5 Cm);
Lvs32-th Transducer Without Fairing Block: 9.6” X 1.8” X 5.4” (24.4 X 4.6 X 13.7 Cm)
Lvs32-th Transducer With Fairing Block: 9.6” X 3.4” X 8.1” (24.4 X 8.6 X 20.6 Cm)

Weight:
Gls 10 Sonar Black Box: 4.3 Lbs (2.0 Kg);
Lvs32-th Transducer Without Fairing Block: 4.4 Lbs (2.0 Kg)
Lvs32-th Transducer With Fairing Block: 5.0 Lbs (2.3 Kg)
Water Rating: Ipx7
Garmin Marine Network™ Ports: 1 (Small Connector)

Temperature Range:
Gls 10 Black Box: Operating: -15 C to 70 C
Panoptix Livescope Lvs12 Transducer: Operating: 0 C to 40 C

Sonar Features & Specifications
Frequencies Supported: 530 - 1,100 Khz
Transmit Power: 500 W
Maximum Depth Forward: 200’ (61.0 M)
Power Input: 10-32 V
Power Usage: 21 W Typical, 58 W Max
Fuse: 7.5 a
Beamwidth: 20° X 135°
Transducer Cable Length: 20 Ft.
Transducer Number of Pins: 21

In the Box:


LiveScope GLS 10 sonar black box
Panoptix LVS32 transducer
Thru-hull mount hardware
Power cable
2 meter Garmin marine network cable, small connector
Network adapter cable
Mounting hardware
Documentation
