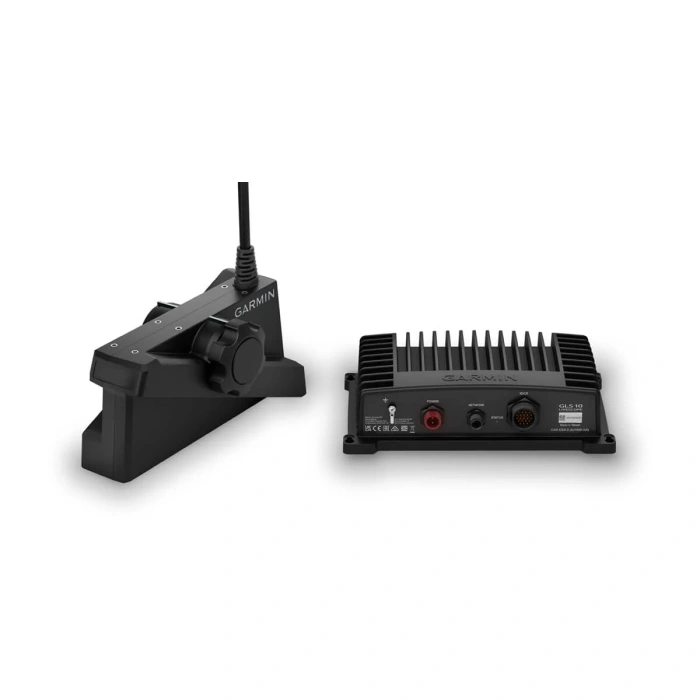

GARMIN LiveScope XR System w/ LVS62XR and GLS10



3273,26 €
SKU: 010-02719-00
Brand:
Qty: 0
Delivery time: 1-3 дня

HE BEST OF THE BEST JUST HIT THE OPEN WATER

You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.

Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater.

Find fish circling your boat with clear views close around your hull.

Upgrade your current LiveScope System black box (GLS 10 sonar module) with just a new transducer.

Get maximum contrast and clarity in your images with vivid color palettes.

Don’t miss a thing with supported Forward, Down and Perspective modes plus necessary mount.

THE LONG VIEW

The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500’ in freshwater and 350’ in saltwater.

A CLOSE VIEW

The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.

REAL-TIME IMAGES

Real-time sonar ensures that your live images are as accurate as possible.

IMAGE STABILIZATION

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOR PALETTES

Choose from seven vivid color options — including aqua, Caribbean, lava and more — to see fish and structure in maximum contrast and clarity.

DIMENSION

GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);

LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)

WEIGHT

GLS 10 sonar black box: 4.3 lbs (2.0 kg)
LVS62 transducer with cable: 3.92 lbs (1.78 kg)
LVS62 transducer without cable: 2.66 lbs (1.21 kg)

WATERPROOF IPX7
TRANSDUCER BEAMWIDTH 20° x 135°
TRANSDUCER CABLE LENGTH 20 ft
TRANSDUCER NUMBER OF PINS 21
TEMPERATURE RANGE

GLS 10 Black Box: Operating: -15 C to 70 C

LVS62 Transducer: Operating: 0 C to 40 C

Electrical Features

POWER INPUT 10-32 V
POWER USAGE 21 W typical, 58 W max
FUSE 7.5 A
COMPASS-SAFE DISTANCE 7" (0.18 m)

Sonar Features

FREQUENCY 265 - 550 kHz
TRANSMIT POWER 500 W
MAXIMUM DEPTH Freshwater: Down and Forward: 500’ (152.0 m)Saltwater: Down and Forward: 350’ (106.0 m)
SONAR TYPE Live
TARGET SEPARATION @100' 22"
PERSPECTIVE MODE MOUNT INCLUDED

Connections

GARMIN MARINE NETWORK PORTS

1 (small connector)
